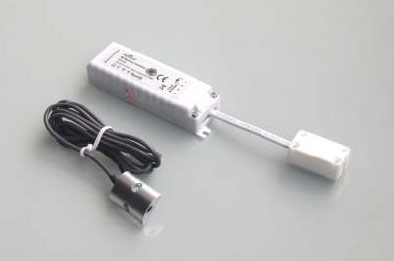

Sensor Series,Infra-red Sensor Switch

Model:	GP-S001-AC
Specs:	● Motion of door operates switch ● Opening the door switches the light on and closing the door switches it off again ● Power: AC220~240V/50~60Hz ● Max load:26W(CFL Tube lamp) ● Surface-mounted and recessed-mounted receiver are available. ● Clearance between sensor and the inside of the door can be up to 100mm(S001L,depending on surface finish)

Product parameters

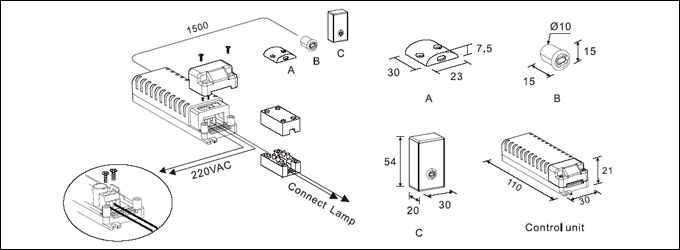

Model#	Control unit size(mm)	Receiver size(mm)	Weight(g)	Features	Note
GP-S001A-AC	1103021	23307.5	80g	● Main cable 1.5m ● S001LC design for sliding door	● the IR sensor receiver would be interfered by fierce light ● the reflective surface can’t be black,transparence or translucent

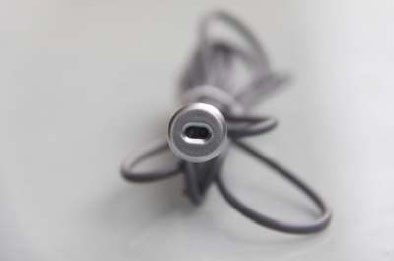

GP-S001B-AC		Ø15*15	80g

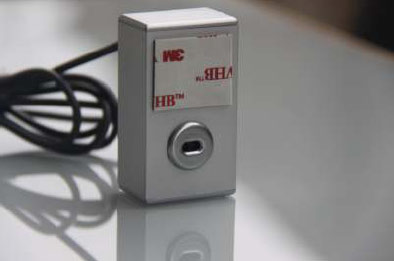

GP-S001C-AC		302054	100g
GP-S001LC-AC		302054	100g
